Commercial Coffee Grinder Structure
Made For Daily Coffee Service
With an aluminum body and 1.2kg hopper capacity, JX-683P offers reliable performance for coffee shops, cafes, and commercial coffee applications.
Key Features
- Aluminum body
- 1.2kg bean hopper
- Suitable for daily commercial use
Brand Introduction
Shaoxing Jiehui Electrical Appliances Co., Ltd.
JieHui Coffee specializes in professional coffee grinder manufacturing, providing commercial grinding solutions for coffee shops, cafes, restaurants, and coffee businesses worldwide.
With precision burr technology and adjustable grinding systems, JieHui grinders deliver accurate particle size control and consistent grinding performance, helping professionals achieve stable coffee extraction and better flavor results.
83mm Commercial Coffee Grinder Technical Specifications
Explore the complete specifications of the JX-683P commercial coffee grinder, including burr size, motor performance, capacity, and control features for professional coffee operations.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Product Model | JX-683P | Burr Type | Flat Burr |
| Burr Diameter | 83mm | Burr Lifetime | 1000kg |
| Grinding Capacity | 15-30kg/h | Grinding Rate | 3.27g/s |
| Motor Power | 550W | Motor Speed | 1400RPM |
| Voltage | 110-240V | Frequency | 50/60Hz |
| Bean Hopper Capacity | 1.2kg | Control Mode | Time Mode / Weighing Mode |
| Display Type | Color Touch Screen | Heat Dissipation | Fan Cooling |
| Main Body Material | Aluminum | Available Colors | Black / White / Silver / Red |
| Net Weight | 16kg | Gross Weight | 19kg |
| Product Dimensions | 40 × 25 × 66.5cm | Application | Commercial Coffee Grinding |
83mm Coffee Grinder features
JX-683P commercial coffee grinder delivers precise grinding control with an 83mm flat burr, adjustable settings, and stable coffee output for professional coffee applications.
83mm Flat Burr
High-Speed Grinding With Consistent Results
The 83mm flat burr system delivers efficient grinding performance with consistent particle size distribution. With a grinding rate of 3.27g/s, JX-683P provides stable output for professional coffee service.
Key Highlights
- 83mm flat burrs
- Grinding speed up to 3.27g/s
- Burr lifetime up to 1000kg
Color Touch Display
Easy Control For Accurate Dosing
The color touch display makes grinding settings clear and easy to adjust. Single and double cup modes help control grinding time and keep each dose consistent.
Key Features
- Color touch screen
- Single / double cup timer
- Grinding parameter adjustment
- Time and temperature display
Metal Grind Adjustment Dial
10-Level Grind Adjustment For Espresso Control
The metal adjustment dial features a clear 0-9 grind scale, allowing precise grind adjustment for consistent espresso preparation.
Key Features
- 0-9 grind adjustment scale
- Metal adjustment knob
- Clear grind markings
- Smooth and precise control

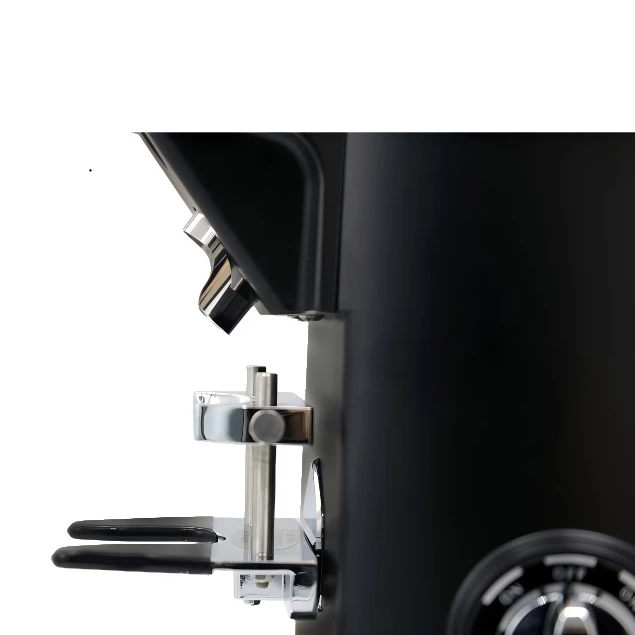

Precise Powder Output
Clean And Consistent Dosing
The optimized outlet design delivers coffee grounds directly into the portafilter, helping reduce powder scattering and improve dosing consistency during daily operation.
Key Features
- Direct powder output
- Stable coffee dosing
- Reduced powder scattering
- Built-in portafilter support

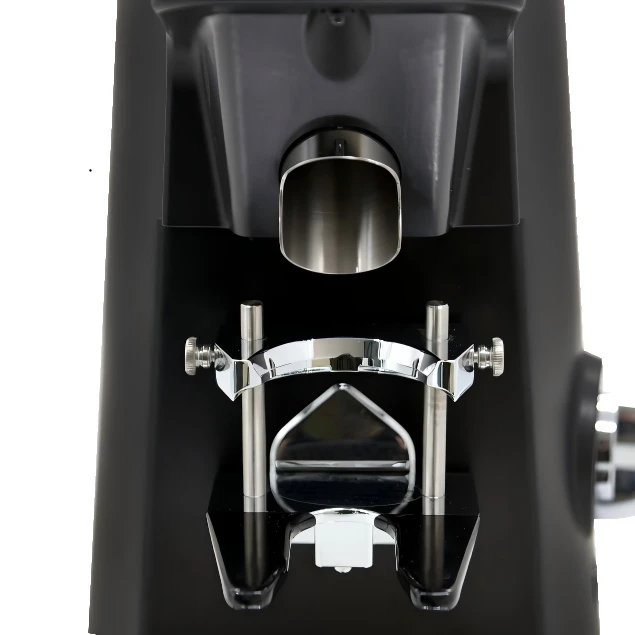

Clean Powder Outlet
Smooth Output With Less Coffee Residue
The optimized powder outlet helps coffee grounds fall smoothly into the portafilter, reducing powder scattering and keeping the working area cleaner.
Key Features
- Smooth powder output
- Less powder scattering
- Easy daily operation
commercial coffee grinder Applications
Ideal For Coffee Shops, Cafes, Restaurants And Professional Coffee Service
JX-683P commercial coffee grinder is suitable for daily coffee grinding in:
☕ Coffee Shops
Consistent grinding performance for espresso preparation during busy service hours.
☕ Specialty Cafes
Precise grind adjustment for baristas who need better extraction control.
☕ Restaurants & Hotels
Reliable operation for professional coffee preparation and beverage service.
☕ Coffee Chains
Stable output for multiple locations and high-frequency use.
Display Screen Function Demonstration
Customize Commercial Coffee Grinders For Your Brand
JieHui Coffee provides OEM services for commercial coffee grinders, supporting customers with brand customization and bulk production requirements.
We work with coffee equipment brands and distributors to customize product appearance, logo, packaging, and related requirements for different markets.
OEM Services：
- Logo customization
- Product appearance customization
- Packaging customization
- Bulk production support
FAQ
1. Does JX-683P have quality certifications?
Yes. JX-683P is manufactured under an ISO9001 quality management system and meets CE certification requirements, ensuring reliable quality and safety for global markets.
2. What is the MOQ for JX-683P coffee grinder?
The MOQ is 20-50 units, depending on order requirements and customization options.
3. Can you provide OEM customization service?
Yes. We support OEM customization including logo, appearance, and packaging customization to help customers build their own coffee equipment brands.
4. Can I order samples before bulk purchasing?
Yes. Sample orders are available for product testing and market evaluation before placing a bulk order.
5. What voltage options are available for different markets?
JX-683P supports 110-240V, 50/60Hz, making it suitable for different country power standards.
